Overview

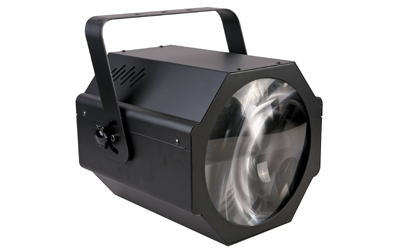

Welcome to the Orion ORFX4 Cyclops2 9-channel DMX lighting fixture. Compact and lightweight, it is suitable for a wide range of party, nightclub and entertainment purposes, with easily adjustable operating modes and functions.
Features
- Multi-colour Wide Field LED DJ Light Effect
- Multiple Control Modes (Audio Chase, Automatic, Manual & DMX3)
- Easy 'Plug and Play' Operation
- Operates Either Standalone or Ganged with Multiple Units
- 45° Beam Angle
- AC Throughput for Easy Setup of Multiple Units
- Integrated Microphone for Audio Chase
- Includes Mounting Bracket
Specifications
| Light Source: | 280 x RED, 63 x GREEN, 126 x BLUE |
| Beam Angle: | 45° |
| Operational Modes: | Audio Chase, Automatic, Manual & DMX |
| DMX Protocol: | DMX-512 USITT (6 Channels) |
| DMX Connection: | 3-Pin XLR (In / Thru) |
| Input Power: | AC 120 60Hz / 230V 50Hz |
| Power Consumption: | 25 Watts |
| Dimensions (in): | 12.6 x 14.0 x 13.8 |
| Dimensions (mm): | 320 x 356 x 350 |
| Weight: | 12.1 lbs / 7.5 kg |
[ DOWNLOAD MANUAL ]
