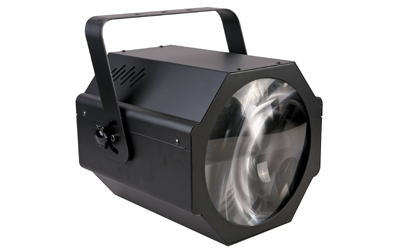

Welcome to the Orion ORFX4 Cyclops2 9-channel DMX lighting fixture. Compact and lightweight, it is suitable for a wide range of party, nightclub and entertainment purposes, with easily adjustable operating modes and functions.

front rear effect1 effect2 effect3


  • Multi-colour Wide Field LED DJ Light Effect
  • Multiple Control Modes (Audio Chase, Automatic, Manual & DMX3)
  • Easy 'Plug and Play' Operation
  • Operates Either Standalone or Ganged with Multiple Units
  • 45° Beam Angle
  • AC Throughput for Easy Setup of Multiple Units
  • Integrated Microphone for Audio Chase
  • Includes Mounting Bracket


Light Source: 280 x RED, 63 x GREEN, 126 x BLUE
Beam Angle: 45°
Operational Modes: Audio Chase, Automatic, Manual & DMX
DMX Protocol: DMX-512 USITT (6 Channels)
DMX Connection: 3-Pin XLR (In / Thru)
Input Power: AC 120 60Hz / 230V 50Hz
Power Consumption: 25 Watts
Dimensions (in): 12.6 x 14.0 x 13.8
Dimensions (mm): 320 x 356 x 350
Weight: 12.1 lbs / 7.5 kg
